EA-M-3P (24V)
EVOPICV Proportional Actuator, Motorised, 3 point 24v AC, 6mm max stroke, 120Nm closing force and 13 s/mm speed. Supplied with 1.5m cable and adapter…
EA-M-PR (24V - Auto Stroke)
EVOPICV and Dynasty Valve Actuator. 0-10v modulating (24v), automatic stroke detection with feedback signal. Field configurable input signal (0-10v,…
EA-M-PR (24V - 3mm Stroke)
EVOPICV Proportional Actuator, factory set to 0-10v modulating (24v), 3.2mm stroke. Field Configurable, input signal (0-10v, 0-5v, 2-10v, 4-20mA).,…
EA-M-PR (24V - 4.3mm Stroke)
4 Port Valve Proportional Actuator, factory set to 0-10v modulating (24v), 4.3mm stroke. Field Configurable, input signal (0-10v, 0-5v, 2-10v,…
EA-M-PR (24V - 6mm Stroke)
EVOPICV Proportional Actuator, factory set to 0-10v modulating (24v), 6mm stroke. Field Configurable, input signal (0-10v, 0-5v, 2-10v, 4-20mA).,…
EA-M-3P (230V)
EvoPICV Actuator, Motorised, 3 Point 230v AC, 6mm maximum stroke, 120Nm force. Includes adapter ring and cable. Actuator Drive Speed is 13 sec/mm for…

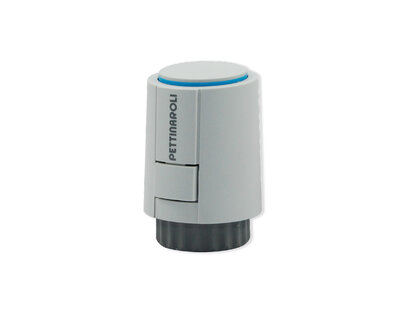

EA-T-OM (24V - 4mm Stroke)
EVOPIC Actuator , Thermo-Electric, On Off, 24v, 4mm Stroke, 1m Cable, 100Nm Closing Force. Includes Adapter Ring. 3 Min Run Time. Normally closed…
EA-T-OM (230V - 4mm Stroke)
EVOPIC Actuator , Thermo-Electric, On Off, 230v, 4mm Stroke, 1m Cable, 100Nm Closing Force. Includes Adapter Ring. 3 Min Run Time. Normally closed…
